Tungsten Carbide Octangle Tips
K10, K30, K40, YG6, YG8, YG11, YG15
Key words:
Classification:
Tungsten Carbide for Geological and Mining
Product accessories:
Hotline:
Tungsten Carbide Octangle Tips
K10 K30 K40 Cemented Tungsten Carbide Octangle Tips for Drill Core Drill Bit
Product Description
Tungsten carbide tips with octagonal shape are normally used for coring bit. It's weld to core bit. for coring in softer rock formations, overburden drilling, and cleaning of drill holes.
| Type | Octagonal shape |
| Material and technologyc | Tungsten Carbide in blanks |
| Grade | YG8 or other grade as required |
| Application | For making core drilling bits |
Features
1. Strong cutting structure durability.
2. Reliable quality.
3. High toughness and wear resistance
4. Reasonable price.

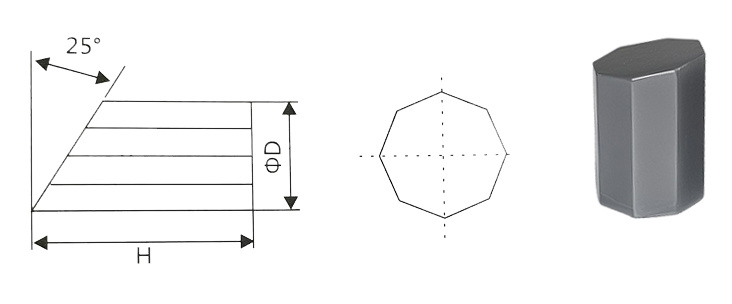

Dimension (mm) | ||
Diameter D | Height H | Angle (degree) |
Φ5 | 10 | 25 |
Φ7 | 10 | 25 |
Φ10 | 10 | 25 |
Recommended carbide grade
Grade | WC (%) | Co (%) | Density (g/cm3) | Hardness (HRA) | TRS (N/mm2) | ISO Code |
YG6 | 94 | 6 | ≥14.6 | ≥91 | ≥2150 | K10 |
YG8 | 92 | 8 | ≥14.5 | ≥90 | ≥2250 | K30 |
YG11 | 89 | 11 | ≥14.1 | ≥88 | ≥2300 | K40 |
YG15 | 85 | 15 | ≥13.9 | ≥85 | ≥2500 | K40 |
