Tungsten Carbide Flat Plate
WC-Co, Thickness 4-10mm, Width 10-100mm, length 40-300mm,
Key words:
Classification:
Tungsten Carbide Strip
Product accessories:
Hotline:

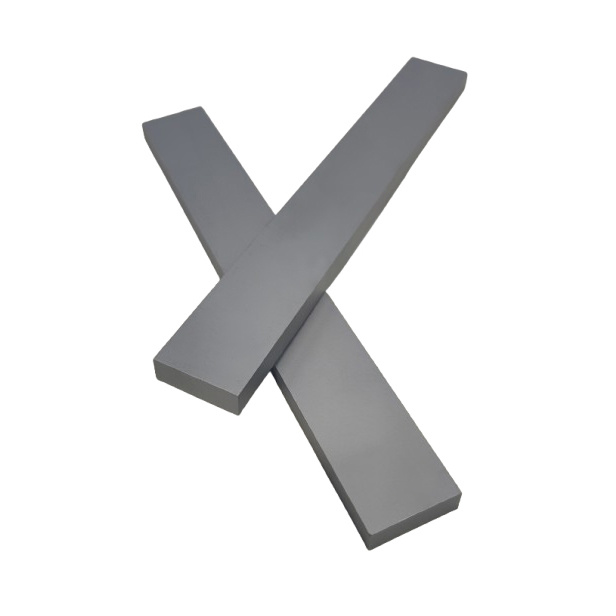

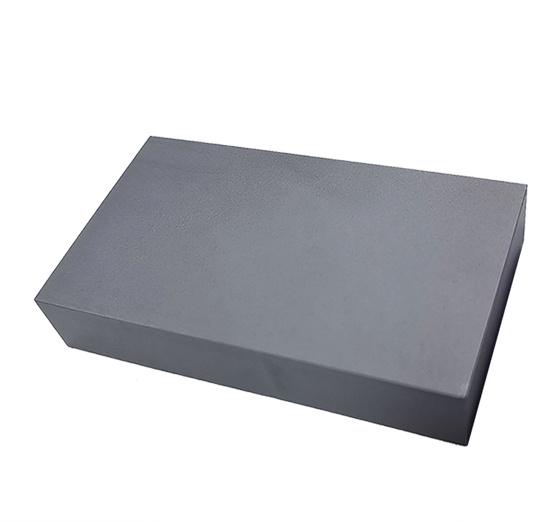

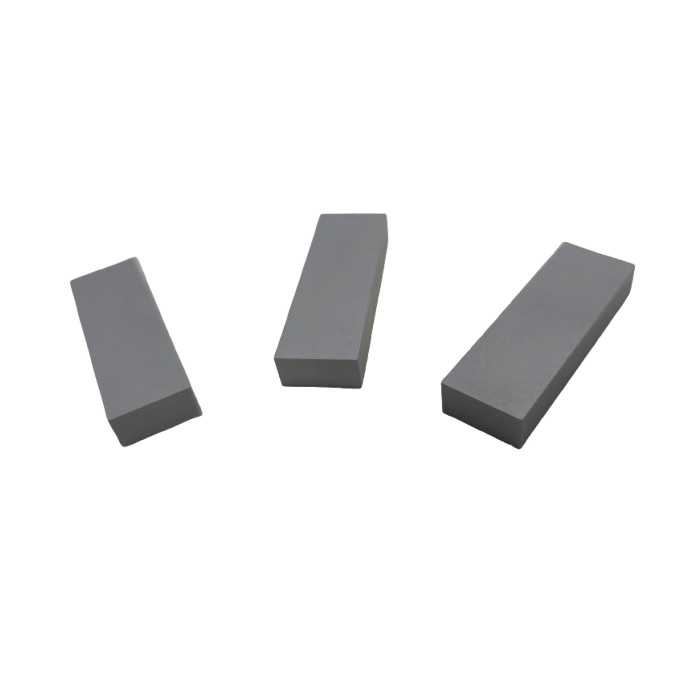

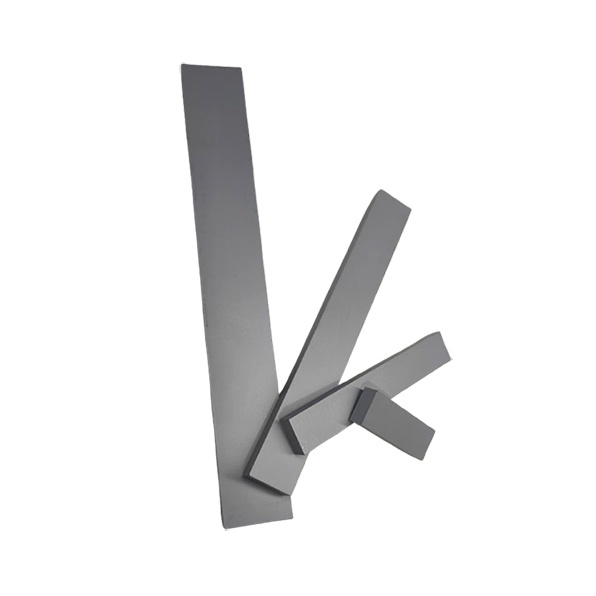

Tungsten Carbide Flat Plate
Tungsten carbide strips, tungsten carbide FLAT BARS, tungsten carbide blocks, tungsten carbide blank, Cemented Carbide plates
Introduction of Tungsten Carbide Plate (Cemented Carbide Sheets)
(Tungsten Carbide Strips, Tungsten Carbide STB strips, Tungsten Carbide Blocks, Tungsten Carbide Sheets, Tungsten steel plates, Wolfram Carbide
Tungsten carbide-cobalt alloy (cemented carbide) sheets are high-performance materials manufactured via powder metallurgy, using tungsten carbide (WC) as the hard phase and cobalt (Co) as the binder. Their unique microstructure endows them with extreme hardness, wear resistance, and high-temperature resistance, making them indispensable key materials in modern industries such as manufacturing, chemical engineering, and healthcare.
I. Core Composition & Production Process
The primary components of cemented carbide sheets are tungsten carbide (80%-97% content) and cobalt (3%-20% content), with precise proportioning to optimize performance. The production process includes:
1. Powder Preparation: Ultra-fine WC and Co powders are produced via ball milling to ensure particle uniformity.
2. Mixing & Compacting: Raw materials are wet-milled, dried, granulated, and then compacted under high pressure, achieving a green compact density of over 85% of the theoretical value.
2. Mixing & Compacting: Raw materials are wet-milled, dried, granulated, and then compacted under high pressure, achieving a green compact density of over 85% of the theoretical value.
3. Sintering & Treatment: Sintering at 1400-1500°C in a vacuum or reducing atmosphere forms a dense structure where WC particles bond with the Co matrix. High-end products may use hot isostatic pressing (HIP) to eliminate internal defects and further improve density and strength.
4. Precision Machining: Dimensions are controlled via wire electrical discharge machining (EDM) and grinding, achieving a tolerance of ±0.05mm.
II. Key Properties
1. Ultra-High Hardness & Wear Resistance: Hardness reaches HRA 89-93 (equivalent to HRC 69-81), with wear resistance over 10 times that of high-speed steel, capable of enduring high-load cutting and friction for extended periods.
2. High Strength & Impact Resistance: Flexural strength ranges from 2000-3500 MPa. Higher cobalt content improves toughness, making it suitable for complex stress environments.
3. High-Temperature & Chemical Stability: Maintains stable hardness at 500°C, resists acid/alkali corrosion, and shows excellent oxidation resistance, ideal for chemical equipment and high-temperature molds.
4. Low Thermal Expansion & High Thermal Conductivity: Thermal expansion coefficient is only 1/3 that of steel, with thermal conductivity close to metals, suitable for precision instruments and heat dissipation components.

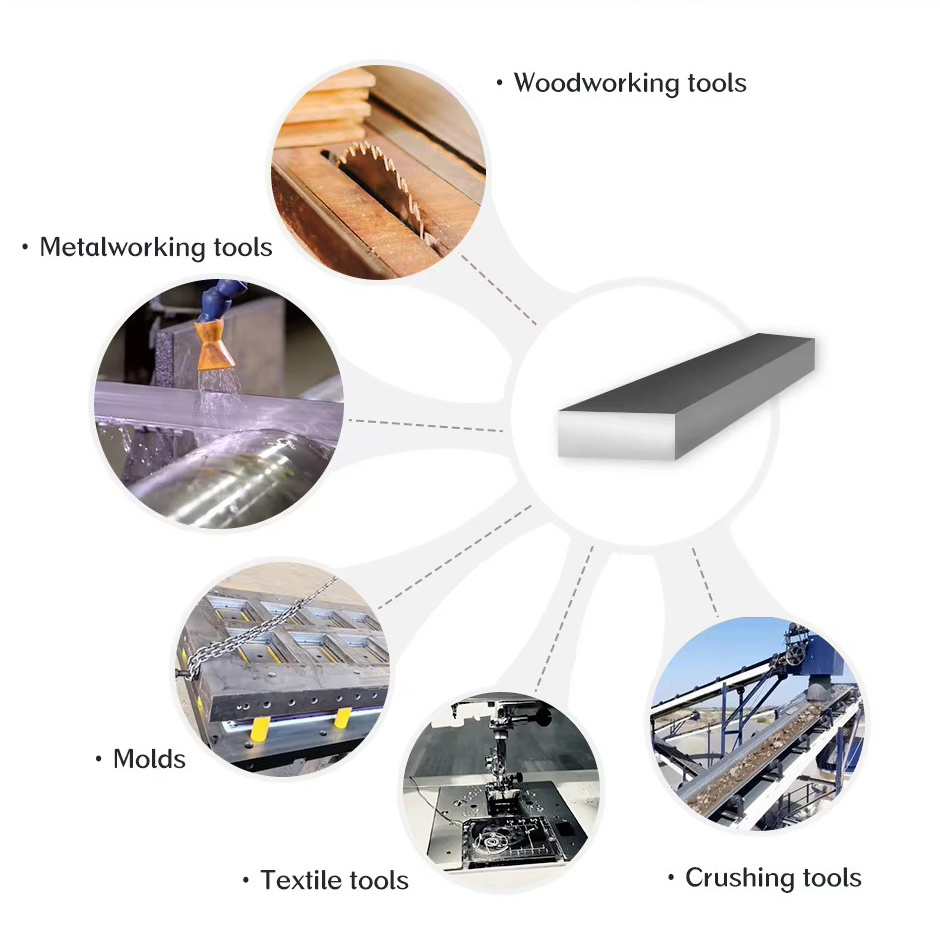

III. Application Fields
1. Mold Manufacturing:
- Blanking Dies: For high-speed blanking of thin sheets (copper, aluminum, stainless steel), with a service life dozens of times longer than traditional die steel.
- Progressive Dies: For precision stamping of electronic components (e.g., LED lead frames, silicon steel sheets), ensuring dimensional accuracy and mass production efficiency.
2. Cutting Tools & Wear-Resistant Components:
- Cutting Tools: Woodworking tools, plastic granulator blades, etc., maintaining sharpness under harsh conditions and reducing replacement frequency.
- Wear-Resistant Liners: Used in mining machinery and petroleum equipment, with significantly better abrasion resistance than cast iron.
3. Chemical & Medical Fields:
- Corrosion-Resistant Parts: Chemical pipelines, valves, etc., resisting strong acid/alkali erosion.
- Radiation-Shielding Materials: Shielding panels for medical equipment, effectively blocking X-rays and γ-rays.
4. Other Applications:
- Photovoltaic Supports: High-temperature oxidation resistance ensures long-term outdoor stability.
- Electronic Packaging: Low thermal expansion and high thermal conductivity suit chip packaging substrates.
IV. Product Specifications & Customization Services
1. Standard Specifications:
- Thickness: 4-10mm (tolerance ±0.2-±0.3mm); custom thickness down to 0.5mm available.
- Dimensions: Width 10-100mm, Length 40-300mm; large-size splicing supported.
2. Customization Options:
- Composition Adjustment: Low-cobalt (3%-8%) for ultra-hardness or high-cobalt (15%-20%) for high-toughness alloys based on application needs.
- Shape Machining: Supports precision machining for special shapes (cutting, drilling, slotting) to meet complex design requirements.
V. Tungsten Carbide Plate — Grade
Grade | Density g/cm3 | Hardness HRA | TRS N/mm2 | Application | ISO code |
YG6X | ≥14.6 | ≥91.5 | ≥2050 |
Good wear resistance. Suitable for drawing steel wire, non-ferrous metal wire, alloy wire and rod with diameter under 6mm under minor stress.
| K10 |
YG6 | ≥14.6 | ≥91 | ≥2150 |
Good wear resistance. Suitable for drawing steel wire, non-ferrous metal wire, alloy wire and rod with diameter under 20mm under large stress.
| K10 |
YG8 | ≥14.5 | ≥90 | ≥2250 |
Good wear resistance and toughness. Suitable for drawing of steel, non-ferrous metal rod and tube, or make wear resistance parts.
| K30 |
YG11 | ≥14.1 | ≥88 | ≥2300 |
Suitable for punching tools, drawing tools working in small pressure.
| K40 |
YG15 | ≥13.9 | ≥85 | ≥2500 |
Suitable for punching tools, drawing tools working in large pressure.
| K40 |
YG20 | ≥13.4 | ≥80 | ≥2650 |
Suitable for make cold upsetting, cold punching and cold pressing mould.
| K40 |
YT5 | ≥12.5 | ≥89.5 | ≥1600 |
Suitable for rough machining uneven section of carbon steel, alloy steel and cast steel.
| P30 |
YT15 | ≥11.0 | ≥91.5 | ≥1350 |
Suitable for semi-finish turning and finish turning of carbon steel and alloy steel during interval cutting, or rough milling of continuous section, reaming and rough reaming of cast hole.
| P10 |
YD03 | ≥9.6 | ≥92.0 | ≥1000 |
Suitable for large cutting output semi-finish or finish machining of some materials which difficult to machining, such as D60 square steel, 58SiMn, etc.
|
|
YW1 | ≥12.4 | ≥92.0 | ≥1450 |
Suitable for steels hard to machining, such as heat resistant steel, high-manganese steel, stainless steel, etc. It also used to machining plain steel and cast iron.
| M10 |
YW2 | ≥12.5 | ≥90.5 | ≥1500 |
Suitable for semi-finish or finish machining of materials hard to machining, such as heat resistant steel, high-manganese steel, stainless steel, and high-grade alloy steel, etc. It also used to machining plain steel and cast iron.
| M20 |
V. Tungsten Carbide Plate — Regular Dimension
| Length | Width | Thickness |
| Dimension | 40-300mm | 10-100mm | 4-10mm |
| Tolerance | ±0.25-±1.0mm | ±0.2-±1.0mm | ±0.2-±0.3mm |
WNiFe, Szie 2.5~180mm, 17.0~18.65g/cc, Machined, 30x20x15mm，50x20x15mm，60x20x15mm
WHA, High-density, WNiFe / WNICu, 17.0~18.5g/cc, Standard & Non-Standard, Support Customization
WHA, 17.0~18.5 g/cc, Dia 2.5~260mm, Non-toxic
