Tungsten Carbide Round Bar
WC-Co, YG6X,YG8X,YG10X,YG12X
Key words:
Classification:
Tungsten Carbide Rod
Product accessories:
Hotline:
Tungsten Carbide Round Bar
Tungsten carbide rods, Wolfram carbide rods, solid carbide rods, tungsten carbide blanks,Cemented carbide rods, tungsten steel rods

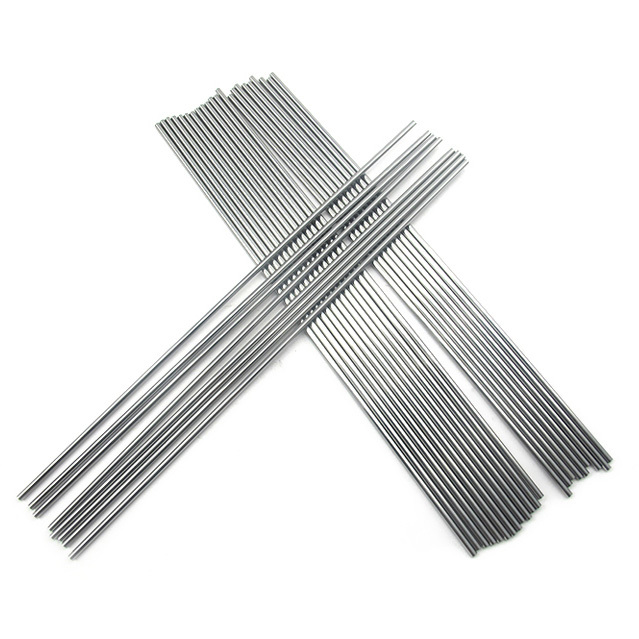

Tungsten Carbide Rods
Tungsten carbide rods, also known as cemented carbide round bars or tungsten steel rods, are technically defined as cylindrical bars composed of tungsten steel or cemented carbide. Specifically, cemented carbide is a composite material produced via the powder metallurgy process, comprising refractory metal compounds (hard phase) and binding metals (binder phase). The terms "cemented carbide" and "tungsten steel" are interchangeable, representing regional variations in terminology rather than material differences.
 |
|
Material | WC（content）88%~94%, WC-Co |
Diameter | 1.5~42 mm |
Length | ≤800mm |
Density | ≥14.0g/cc |
Surface | Machined state |
TRS | ≥2250N/mm2 |
Hardness | ≥89 HRA |
Tungsten Carbide Rods Grade
Grade | Density g/cm3 | Hardness HRA | TRS N/mm2 | Application | ISO code |
YG6X | ≥14.8 | ≥92.0 | ≥2800 | Suitable for machining composite materials, such as Al-Mg alloy, plastic, “king of plastic”, carbon fiber, and ferrous alloy. It is recommend use to produce micro drill, micro milling cutter, reamer, and drill bit for Al-,Mg alloy machining. | K10 |
YG8X | ≥14.5 | ≥90 | ≥2250 | Wear part, such as wood cutting tools, and support chip of centerless grinding. | K30 |
YG10X | ≥14.4 | ≥91.5 | ≥3000 | Suitable for machining steel, cast iron, stainless steel, heat resistant steel, nickel& titanium base alloy. It is recommend use to make general tools, such as twist drill bit, end mill, rotation file, tap, and gun drill, etc. | K10~K20 |
YG12X | ≥14.1 | ≥89 | ≥3200 | Suitable for machining titanium alloy, heat resistant steel, stainless steel, grey cast iron, glass fiber, and reinforced plastic, etc. It is recommend use to produce end mill, reamer and ball-end mill in various specifications. | K20 |

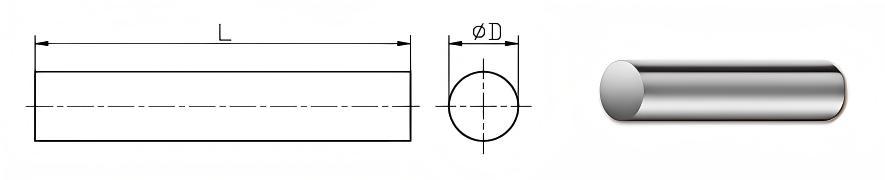

Tungsten Carbide Rods Dimensions
| OD(MM) | Length(MM) |
| 1.5-42 | ≤800 |
WNiFe, Szie 2.5~180mm, 17.0~18.65g/cc, Machined, 30x20x15mm，50x20x15mm，60x20x15mm
WHA, High-density, WNiFe / WNICu, 17.0~18.5g/cc, Standard & Non-Standard, Support Customization
WHA, 17.0~18.5 g/cc, Dia 2.5~260mm, Non-toxic
