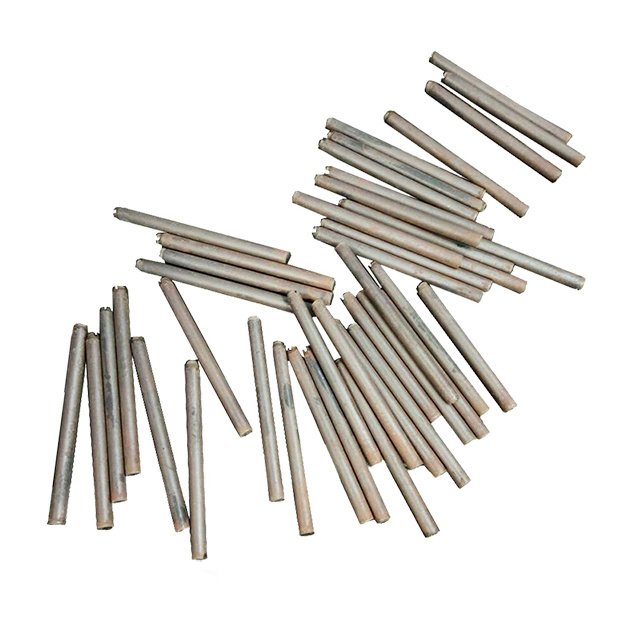

Unmachined After Swaging
language
Product World
High Performance Swaged Tungsten Alloy Bar
92%WNiFe, 1100~1450MPa, 35~40HRC
Key words:
Classification:
Tungsten Alloy Rod
Product accessories:
Hotline:
High Performance Swaged Tungsten Alloy Bar
Introduction of Swaged Tungsten Alloy Bar
Tungsten alloy swagged rod is made of tungsten alloy rod by forging. After a series of thermal mechanical treatment, the mechanical properties of the rod are greatly improved. Generally, the ultimate tensile strength of tungsten alloy rods is 920 MPa and the hardness is 25HRC. However, after swagging, the ultimate tensile strength could be 1200MPa and the hardness could be 35HRC. We can even achieve to 1400 MPa and 40HRC. Excellent performance and stability are widely used in machining tool shank and military fields.
This rotary forging rod is one of our main products. Usually the composition of this product is 92%WNiFe.
Material | W ( content ) 91%~93% W-NI-FE |
Diameter | 8.3~50mm |
Length | ≤760mm |
Density | 17.0~18.1g/cc |
Surface | Swaged state |
UTS | 1100~1450 MPa |
Hardness | 35~40 HRC |
Elongation | 8~25 % |
Machined into Tool Shank
Machined into Penetration
Machined into Long Bars

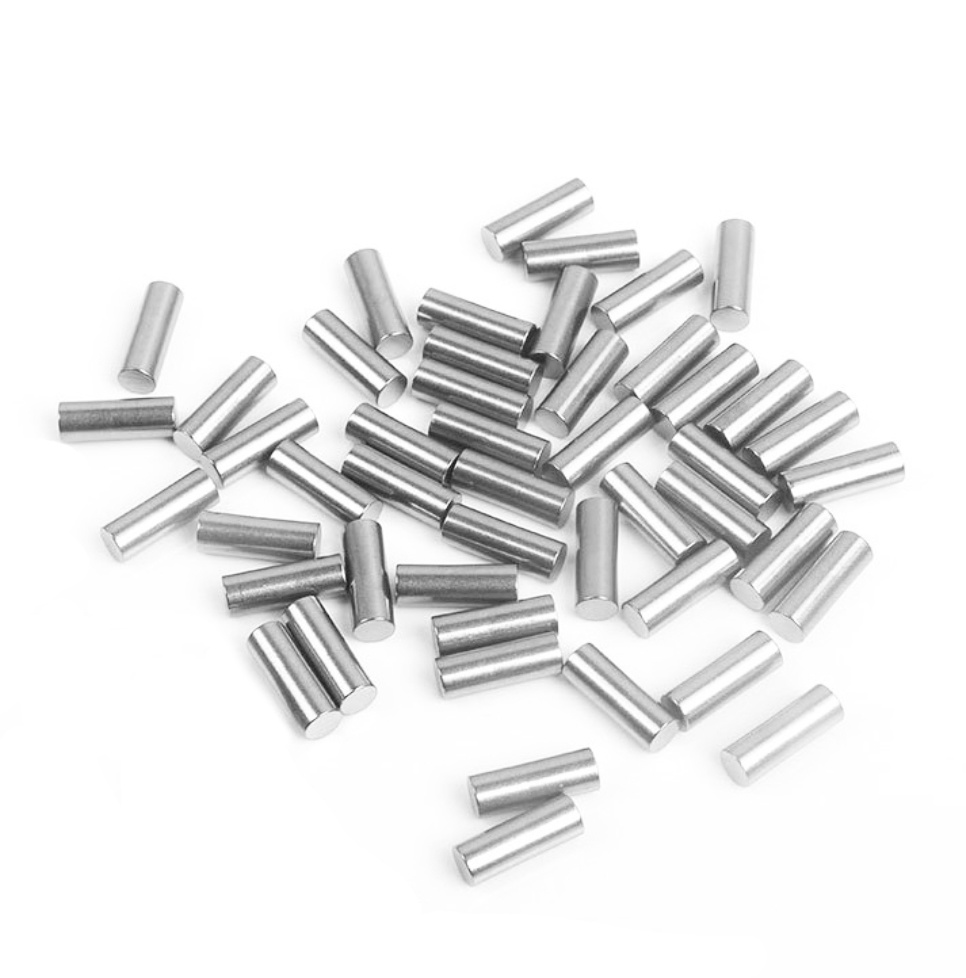

Machined into Short Bars
Advantages of Swaged Tungsten Alloy Bar
Tungsten alloy has the properties of high density, high melting point, high hardness, high tensile strength, high temperature resistance and low vapor pressure, which makes it more and more important in the manufacture of various forging rods. More importantly, the tungsten alloy has wear resistance, which can extend the service life of the tungsten alloy rotary forging rod.
Application of Swaged Tungsten Alloy Bar
Swaged Tungsten Alloy Bar is widely used in machining shockproof knife bar, transportation, medical and other fields.
Standard of Swaged Tungsten Alloy Bar
Grade | Composition | State | Density (g/cc) | UST | Elongation (%) | Hardness (HRC) | Impact toughness (MJ/m2) | Yield strength (MPa) |
W263 | 91WNiFe | Swaged | 17.25±0.15 | ≥1450 | ≥8 | ≥35 | ≥0.3 | ≥1350 |
W262 | 92WNiFe | Swaged | 17.50±0.15 | ≥1400 | ≥5 | ≥35 | ≥0.3 | ≥1300 |
W261 | 93WNiFe |
Swaged | 17.60±0.15 | ≥1050 | ≥6 | ≥35 | ≥0.3 | ≥900 |
W253 | 92WNiFe |
Swaged | 17.40±0.15 | ≥1400 | ≥8 | ≥35 | ≥0.3 | ≥1300 |
W243 | 93WNiFe | Swaged | 17.60±0.15 | ≥1300 | ≥7 | ≥35 | ≥0.3 | ≥1200 |
